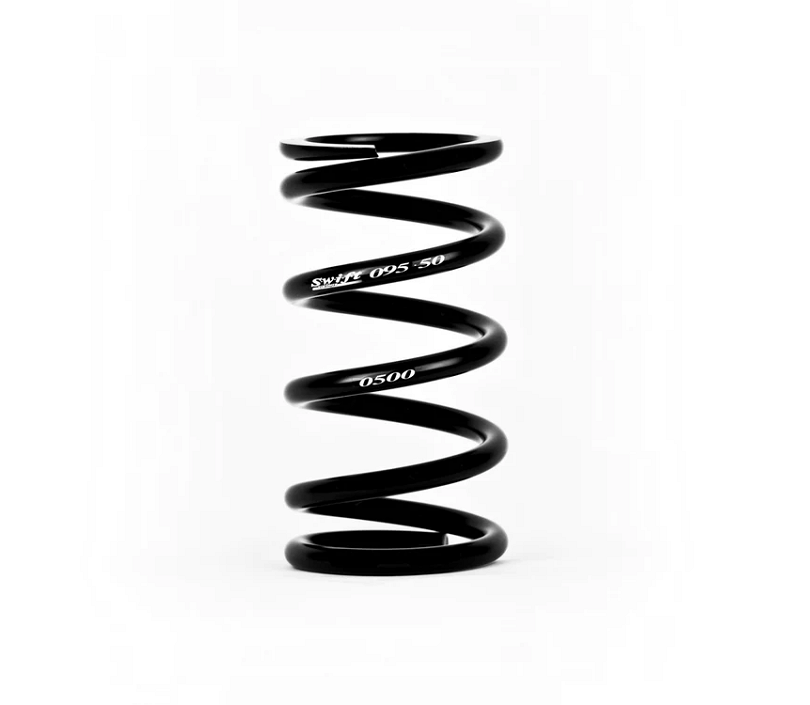

Swift Conventional Spring - 5" ID x 9.5" L - Front

Swift Conventional Spring - 5" ID x 9.5" L - Front

Regular price $119.85 USD
Regular price $141.00 USD Sale price $119.85 USD
Sale Sold out

Swift 5" ID x 9.5" tall conventional front spring.  These springs are flat on one end with a pigtail on the other.

Select your desired rate in the rate selector.

Specs:

PART NUMBER SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
SWI950-500-350 350 5.9 6.6 2,321
SWI950-500-375 375 5.8 6.5 2,442
SWI950-500-400 400 5.7 6.5 2,588
SWI950-500-425 425 5.6 6.4 2,731
SWI950-500-450 450 5.7 6.3 2,804
SWI950-500-475 475 5.7 6.3 2,915
SWI950-500-500 500 5.7 7.6 3,041
SWI950-500-525 525 5.6 6.0 3,153
SWI950-500-550 550 5.7 7.4 3,213
SWI950-500-575 575 5.4 5.9 3,417
SWI950-500-600 600 5.5 7.3 3,468
SWI950-500-625 625 5.3 5.9 3,670
SWI950-500-650 650 5.3 7.3 3,767
SWI950-500-700 700 5.3 7.0 3,856
SWI950-500-750 750 5.0 5.7 4,251
SWI950-500-800 800 5.1 5.4 4,285
SWI950-500-850 850 4.8 7.1 4,729
SWI950-500-SWI950 950 4.7 5.3 5,012
