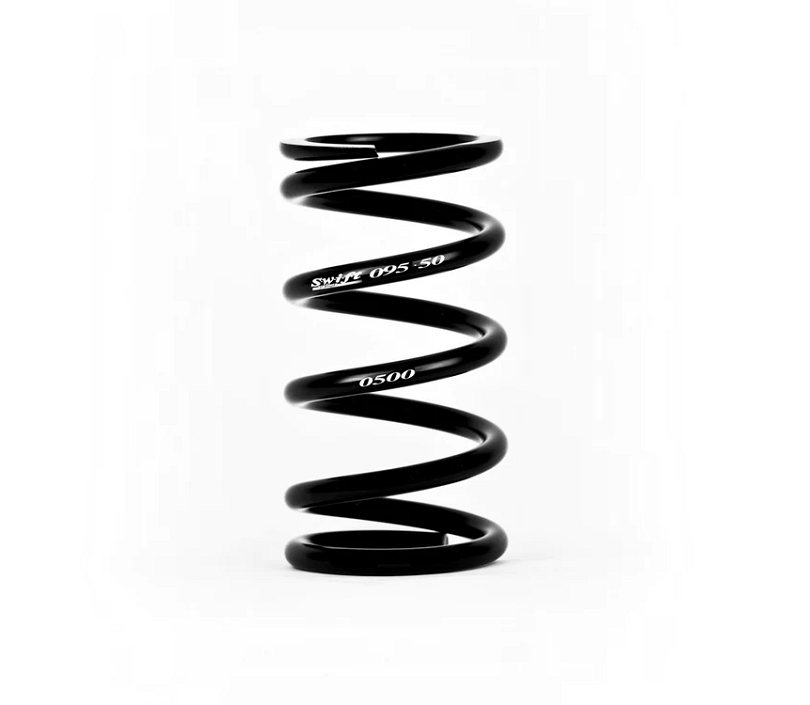

Swift Conventional Spring - 5.5" ID x 9.5" L - Front
Swift Conventional Spring - 5.5" ID x 9.5" L - Front
Regular price
$119.85 USD
Regular price
$141.00 USD
Sale price
$119.85 USD
Unit price
/
per
Couldn't load pickup availability
Share
Swift 5.5" ID x 9.5" tall conventional front spring. These springs are flat on one end with a pigtail on the other.
Select your desired rate in the rate selector.
Specs:
| PART NUMBER | SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| SWI950-550-325 | 325 | 6.1 | 6.8 | 2,206 |
| SWI950-550-400 | 400 | 6.0 | 6.5 | 2,589 |
| SWI950-550-425 | 425 | 5.8 | 6.5 | 2,751 |
| SWI950-550-450 | 450 | 5.7 | 6.4 | 2,877 |
| SWI950-550-475 | 475 | 5.4 | 6.5 | 3,093 |
| SWI950-550-500 | 500 | 5.5 | 6.4 | 3,196 |
| SWI950-550-550 | 550 | 5.5 | 6.2 | 3,408 |
| SWI950-550-600 | 600 | 5.5 | 5.9 | 3,575 |
| SWI950-550-650 | 650 | 5.1 | 6.1 | 4,001 |
| SWI950-550-700 | 700 | 5.1 | 5.9 | 4,144 |
| SWI950-550-750 | 750 | 4.8 | 6.1 | 4,558 |
| SWI950-550-800 | 800 | 4.8 | 4.8 | 3,840 |
| SWI950-550-850 | 850 | 4.1 | 4.1 | 3,460 |
| SWI950-550-900 | 900 | 4.3 | 4.3 | 3,843 |
| SWI950-550-950 | 950 | 4.5 | 4.5 | 1,275 |
| SWI950-550-1000 | 1000 | 4.1 | 4.1 | 4,100 |
| SWI950-550-1050 | 1050 | 4.3 | 4.3 | 4,463 |
| SWI950-550-1100 | 1100 | 4.3 | 4.3 | 4,730 |
| SWI950-550-1150 | 1150 | 4.5 | 4.5 | 5,175 |
| SWI950-550-1200 | 1200 | 3.8 | 3.8 | 4,560 |
