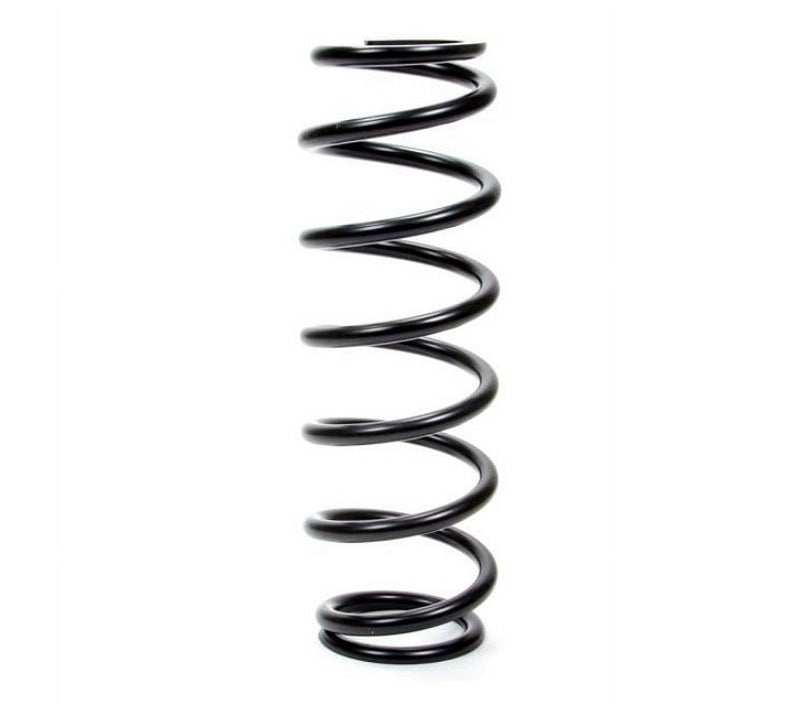

Swift Coil-Over Spring - 2.5" ID x 12" L - Barrel
Swift Coil-Over Spring - 2.5" ID x 12" L - Barrel
Regular price
$102.85 USD
Regular price
$121.00 USD
Sale price
$102.85 USD
Unit price
/
per
Couldn't load pickup availability
Share
Swift 2.5" ID x 12" tall spring for coil-over applications. These springs are barrel type, allowing for increased travel before coil bind.
Select your desired rate in the rate selector.
Specs:
| PART NUMBER | SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |
| SWI120-250-060 B | 60 | 9.6 | 9.6 | 575 |
| SWI120-250-090 B | 90 | 9.1 | 9.1 | 813 |
| SWI120-250-100 B | 100 | 9.0 | 9.0 | 895 |
| SWI120-250-125 B | 125 | 8.7 | 8.7 | 1,091 |
| SWI120-250-150 B | 150 | 7.8 | 9.6 | 1,364 |
| SWI120-250-160 B | 160 | 7.8 | 8.8 | 1,407 |
| SWI120-250-175 B | 175 | 7.7 | 9.4 | 1,547 |
| SWI120-250-185 B | 185 | 7.7 | 9.2 | 1,612 |
| SWI120-250-200 B | 200 | 7.5 | 9.2 | 1,731 |
| SWI120-250-225 B | 225 | 7.4 | 9.0 | 1,902 |
| SWI120-250-250 B | 250 | 7.3 | 8.8 | 2,051 |
| SWI120-250-275 B | 275 | 7.1 | 8.7 | 2,219 |
| SWI120-250-300 B | 300 | 6.9 | 8.6 | 2,420 |
| SWI120-250-325 B | 325 | 6.8 | 8.4 | 2,567 |
| SWI120-250-350 B | 350 | 6.6 | 8.4 | 2,753 |
| SWI120-250-375 B | 375 | 6.5 | 8.2 | 2,873 |
| SWI120-250-400 B | 400 | 6.4 | 8.1 | 3,039 |
| SWI120-250-450 B | 450 | 6.1 | 8.1 | 3,414 |
| SWI120-250-475 B | 475 | 6.0 | 8.1 | 3,561 |
| SWI120-250-500 B | 500 | 6.0 | 7.8 | 3,612 |
| SWI120-250-525 B | 525 | 6.1 | 7.4 | 3,644 |
| SWI120-250-550 B | 550 | 5.8 | 7.6 | 3,932 |
| SWI120-250-575 B | 575 | 5.8 | 7.4 | 4,036 |
| SWI120-250-600 B | 600 | 5.8 | 7.3 | 4,124 |
| SWI120-250-750 B | 750 | 5.4 | 7.0 | 4,937 |
