Swift Spring - 5" ID x 16" L - Rear
Swift Spring - 5" ID x 16" L - Rear
Regular price
$119.85 USD
Regular price
$141.00 USD
Sale price
$119.85 USD
Unit price
/
per
Couldn't load pickup availability
Share

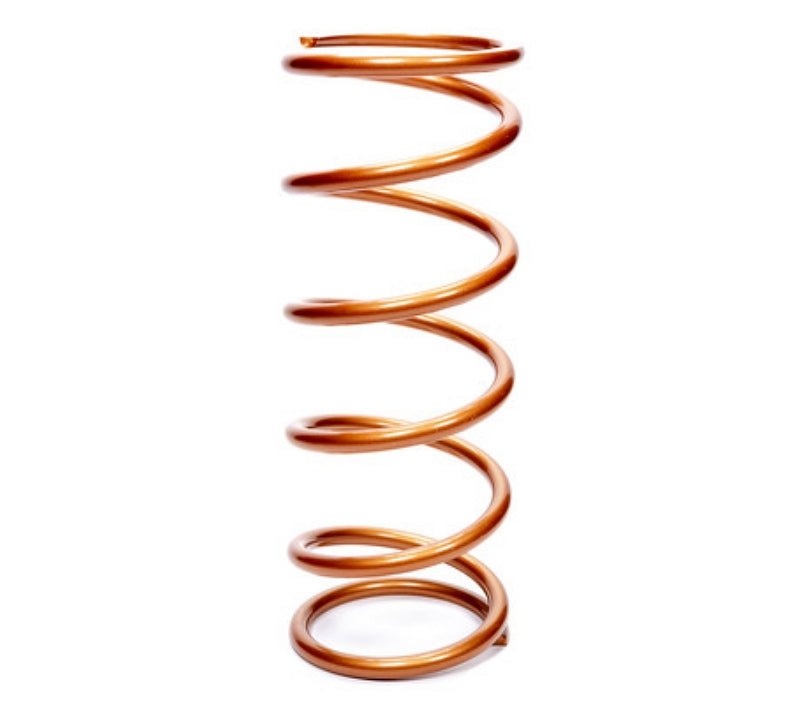

Swift 5" ID x 16" tall rear spring. These springs are flat on both ends.
125 through 175 Lb/in rates are offered as BP barrel versions allowing for more travel. BP version springs come with a copper colored powder coating.
Select your desired rate in the rate selector.
Specs:
| PART NUMBER | SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| SWI160-500-050 | 50 | 12.6 | 12.6 | 628 |
| SWI160-500-065 | 65 | 12.1 | 12.1 | 785 |
| SWI160-500-080 | 80 | 12.2 | 12.2 | 977 |
| SWI160-500-100 | 100 | 12.1 | 12.1 | 1,219 |
| SWI160-500-112 | 112 | 12.0 | 12.0 | 1,349 |
| SWI160-500-125 BP | 125 | 12.0 | 12.3 | 1,541 |
| SWI160-500-150 BP | 150 | 11.7 | 12.0 | 1,808 |
| SWI160-500-175 BP | 175 | 10.7 | 12.0 | 2,100 |
| SWI160-500-200 | 200 | 10.5 | 11.7 | 2,350 |
| SWI160-500-225 | 225 | 10.4 | 11.4 | 2,575 |
