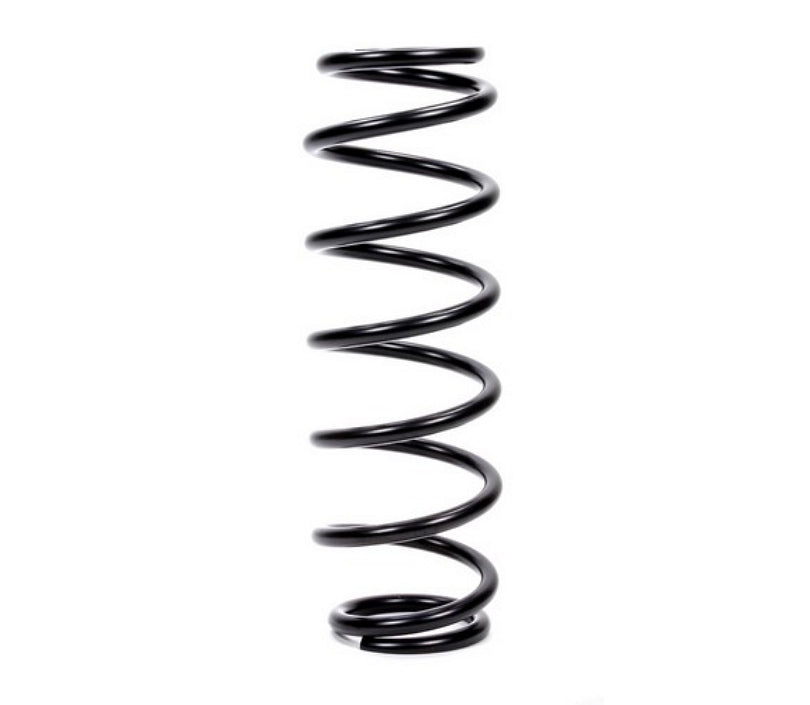

Swift Coil-Over Spring - 2.5" ID x 10" L - Barrel
Swift Coil-Over Spring - 2.5" ID x 10" L - Barrel
Regular price
$102.85 USD
Regular price
$121.00 USD
Sale price
$102.85 USD
Unit price
/
per
Couldn't load pickup availability
Share
Swift 2.5" ID x 10" tall spring for coil-over applications. These springs are barrel type, allowing for increased travel before coil bind.
Select your desired rate in the rate selector.
Specs:
| PART NUMBER | SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |
| SWI100-250-080 B | 80 | 7.8 | 7.8 | 626 |
| SWI100-250-100 B | 100 | 7.6 | 7.6 | 765 |
| SWI100-250-125 B | 125 | 7.3 | 7.3 | 917 |
| SWI100-250-150 B | 150 | 6.8 | 8.2 | 1,152 |
| SWI100-250-160 B | 160 | 6.7 | 7.6 | 1,204 |
| SWI100-250-175 B | 175 | 6.5 | 8.1 | 1,323 |
| SWI100-250-185 B | 185 | 6.4 | 7.6 | 1,397 |
| SWI100-250-200 B | 200 | 6.4 | 7.9 | 1,481 |
| SWI100-250-225 B | 225 | 6.3 | 7.8 | 1,625 |
| SWI100-250-250 B | 250 | 6.1 | 7.7 | 1,783 |
| SWI100-250-275 B | 275 | 5.9 | 7.7 | 1,961 |
| SWI100-250-300 B | 300 | 5.8 | 7.6 | 2,101 |
| SWI100-250-325 B | 325 | 5.6 | 7.5 | 2,266 |
| SWI100-250-350 B | 350 | 5.6 | 7.4 | 2,387 |
| SWI100-250-375 B | 375 | 5.6 | 7.2 | 2,494 |
| SWI100-250-400 B | 400 | 5.5 | 7.1 | 2,633 |
| SWI100-250-425 B | 425 | 5.4 | 7.0 | 2,768 |
| SWI100-250-450 B | 450 | 5.3 | 7.0 | 2,895 |
| SWI100-250-475 B | 475 | 5.4 | 6.8 | 2,955 |
| SWI100-250-500 B | 500 | 5.3 | 6.7 | 3,061 |
| SWI100-250-525 B | 525 | 5.2 | 6.7 | 3,231 |
| SWI100-250-550 B | 550 | 5.2 | 6.6 | 3,324 |
| SWI100-250-575 B | 575 | 4.9 | 6.8 | 3,563 |
| SWI100-250-600 B | 600 | 5.0 | 6.5 | 3,565 |
